Aluminium 2024 (2024A) is one of the most popular high strength Aluminium alloys when it is the heat treated condition. Due to 2024 (2024A) high strength and excellent fatigue resistance,it is used to advantage on structures and parts where good strength-to-weight ratio is desired. It is readily machined to a high finish. It is readily formed in the annealed condition and may be subsequently heat treated. Arc or gas welding is generally not recommended, although this alloy may be spot, seam or flash welded, it is commonly used on structures and components in the aircraft and transportation industries.

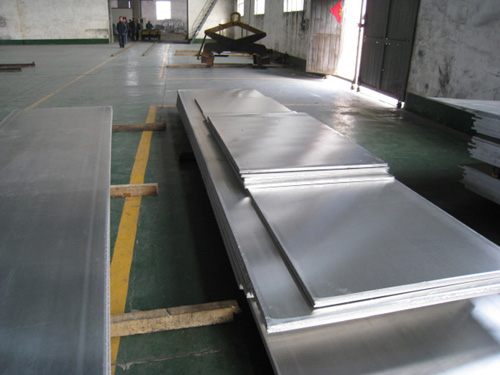

2024 Aluminum plate has several applications including truck and aircraft wheels, truck suspension parts, and is useful in aircraft fuselage components. 2024 Aluminum Plate does have limited weldability, however 2024 Aluminum plate is less corrosion resistant than other alloys.
| Chemical Composition Limits | |||||||||||
| Weight% | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Other Total | Al |
| 2024 USA | 0.50 max | 0.50 max | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max | Rem |
| 2024A France | 0.15 max | 0.20 max | 3.7-4.5 | 0.15-0.8 | 1.2-1.5 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max | Rem |
Especially,2024 plate has T351 temper, indicating it has been solution heat treated, cold worked, and naturally aged, followed by a minimal stretching to reduce stresses in the material.
2024 t351 aluminum plate has good fatigue resistance and is specified for many structural applications for aerospace, including structural components, wing tension structure, and shear ribs and webs. Midwest Steel & Aluminum stocks a full size
Aluminum Alloy 2024 (2024A) is available in Bar ( Flat, Round, Hexagon, Square), Sheet, Plate, Strip, Wire, Rod, Shapes and Tube. Aluminum 2024A (2024) Foil (Shim) is available in various thicknesses. View stock list for further information. Foil Stock List , Sheet Stock List, Plate Stock List. For all stock availability for Alloy 2024 contact us directly.
